Improve Soldering Tool Jig
Research institue
Technology-laboratory of JM Telecom(corp.)
Problem
- Durability of Soldering Tool Jig is short
- When SMT Mount is installed, productivity is decreased, because Soldering Tool Jig¡¯s distance between boards is too long, and for that, Head¡¯s moving distance is (too) long
- Too many Loading/Unloading times
Remark
- Design to shorter the distance of JIG-A1, used for LCD Board production
- Causes too much cost for JIG production

Applied technologyAnd improved process

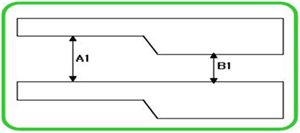

Extend the durability of Soldering Tool Jig, making from 4 times-installment to 5 times-installment, shorter the A1 distance at designing
1) A1 distance: 37mm -> 25mm
2) Usage per day ? 25 -> 20
- Shorter the moving distance of Head for Mounting, change the design of B2 distance from 19mm to 7mm
- Change the material of Soldering Tool Jig
1) Change from CDMA to Duro Stone

Expected effect
Improve the productivity by 91EA/day(per day)
